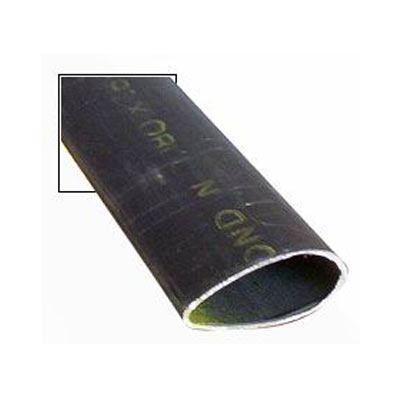

Description
Major Axis |
Minor Axis |
Wall | EQ Round Tension |
EQ Tubing Compression |
Wt./Ft. | Part No. |
1.18 | 0.500 | .035 | 7/8 | 7/16 | 0.314 | 03-11400 |
1.349 | 0.571 | .049 | 1 | 5/8 | 0.498 | 03-11500 |
1.685 | 0.714 | .049 | 1-1/4 | 3/4 | 0.629 | 03-11600 |
2.023 | 0.857 | .049 | 1-1/2 | 1 | 0.759 | 03-11700 |
2.360 | 1.00 | .049 | 1-3/4 | 1-18 | 0.890 | 03-11800 |
2.697 | 1.143 | .065 | 2 | 1-1/4 | 1.021 | 03-00192 |
3.372 | 1.42 | .049 | 2-1/2 | 1-1/2 | 1.283 | 03-12000 |
